Conquering the Wild: Heavy-Duty M12 and GX Connectors for ATVs and UTVs
All-Terrain Vehicles (ATVs) and Utility Task Vehicles (UTVs) are heavily utilized in agricultural surveying, high-voltage line inspection, and extreme off-road sports. As these powersports vehicles become increasingly intelligent, they are packed with sensitive Electronic Fuel Injection (EFI) sensors, Electronic Power Steering (EPS) modules, winch relays, and high-output LED lighting matrices.
However, this sophisticated electronic network must survive in the most hostile physical environments on earth. Deep mud, river crossings, flying gravel, and bone-rattling impacts are standard operating conditions for an ATV. When a fragile wiring harness snaps deep in the wilderness, the vehicle is completely paralyzed. To guarantee reliable power and data in extreme off-road conditions, elite powersports OEMs specify the heavy-duty architecture of PINA GUARD’s overmolded M12 and GX series connectors.
The Extreme Physical Punishment of Off-Roading
Wiring harnesses on powersports equipment face a devastating combination of environmental and kinetic assaults:
Violent Kinetic Shock and High-Frequency Bumping: As a vehicle speeds through craters and over rocky trails, the chassis and suspension absorb massive transient shocks. This level of mechanical vibration will shake standard crimped or screw-terminals loose in a matter of minutes.
Deep Submersion and Mud Encasement: Off-road enthusiasts frequently plunge their vehicles into deep water and mud bogs. Fine mud is not only corrosive, but as it dries and hardens, it acts as a wedge that can force open the mechanical seams of standard connectors.
High-Pressure Washdowns: After a ride, owners routinely use 2,000+ PSI pressure washers to blast mud off the chassis and engine bay. This high-velocity water jet can easily penetrate standard rubber seals.
The PINA GUARD "Double Defense" for Powersports
To keep off-road vehicles running at peak performance, PINA GUARD engineers connectors that treat extreme vibration and total environmental exposure as the baseline standard.
1. Soldered Cores for Unshakeable TelematicsInside every PINA GUARD connector, we strictly reject friction-fit or screw-in terminals. Our precise 100% soldered manufacturing process metallurgically fuses the copper wire directly to the M12 or GX contact pin. When a vehicle catches air and slams back onto the trail, the PINA GUARD soldered joint remains completely solid, ensuring that critical steering and engine telemetry data never drops.
2. Injection-Molded Armor Against Mud and High-Pressure WashersOnce the soldered connections are secured, we encapsulate the entire assembly in an injection-molded, heavy-duty thermoplastic shell. This overmolding process forms a flawless IP68 barrier with an incredibly smooth exterior. Mud cannot find a gripping point on the seamless housing, and the monolithic structure easily deflects the direct blast of post-ride high-pressure washers.

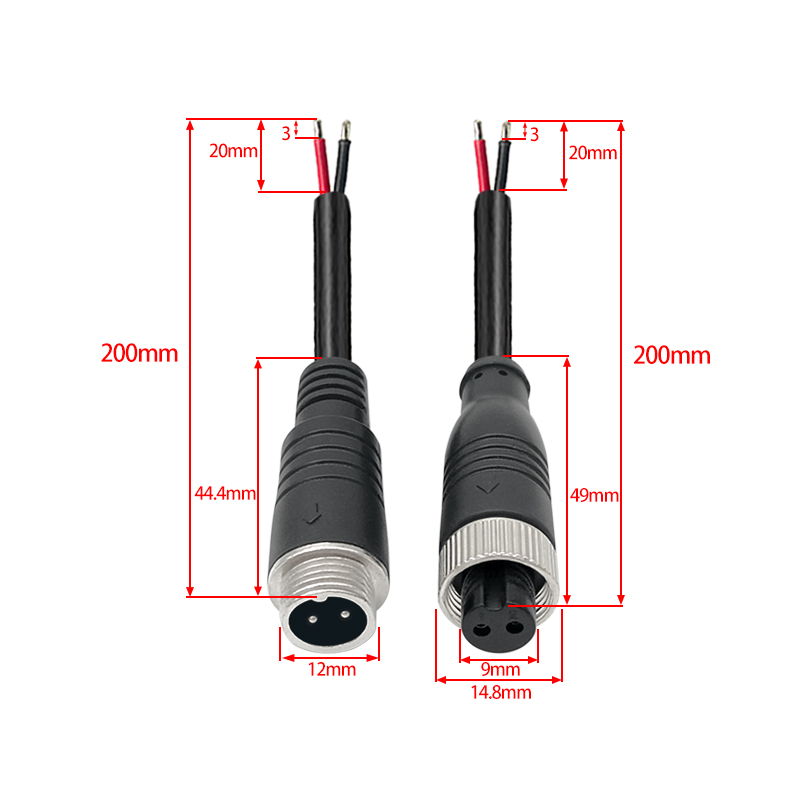

3. Heavy-Duty M12 and GX IntegrationThe compact M12 series is perfectly suited for routing through tight engine bays to connect EFI and speed sensors, while the heavy-duty metal GX series—combined with our ruggedized injection-molded boots—provides unbeatable physical defense and pull-strength for high-amperage winches and roof-mounted light bars.
Dominate the Trail
In the powersports industry, equipment reliability is directly tied to rider safety and the ultimate off-road experience. Do not let a cheap connector become the weak link in your off-road beast. Upgrade your ATV and UTV fleets with the unshakeable, soldered, and overmolded durability of PINA GUARD waterproof connectors.
