Pumping Power: Heavy-Duty Connectors for Hydraulic Fracturing Equipment
The modern oil and gas industry relies heavily on Hydraulic Fracturing (fracking) to extract resources from dense shale formations. A typical well pad utilizes a massive fleet of mobile equipment, including high-pressure pump trucks, blender units, and wireline logging vehicles. These heavy machines are equipped with complex arrays of pressure transducers, flow meters, and fleet telematics.
Operating in remote oilfields, this electronic hardware is subjected to the most violent mechanical forces on the planet. Abrasive frac sand, deep mud, chemical slickwater, and the relentless, bone-rattling vibration of 3,000-horsepower diesel pumps are everyday realities. A single sensor failure can shut down an entire pumping operation, costing operators thousands of dollars per minute. To survive the brutal physics of the oilfield, petroleum engineers specify the indestructible architecture of PINA GUARD’s overmolded M12 and GX series connectors.
The Brutal Physics of the Frac Pad
Wiring harnesses on fracking equipment face a devastating combination of environmental and mechanical assaults:
Violent High-Frequency Vibration: As massive positive-displacement pumps force fluid down the wellbore at 10,000+ PSI, they generate intense, continuous vibrations throughout the truck chassis. This mechanical resonance easily shatters brittle commercial plastics and shakes standard screw-terminals loose.
Abrasive Frac Sand and Silica Dust: Blender units operate in dense clouds of highly abrasive silica frac sand. Fine particulate matter easily penetrates the mechanical seams of standard connectors, grinding away internal contacts and causing catastrophic electrical shorts.
Corrosive Slickwater and Mud: Equipment is constantly blasted with highly corrosive fracking fluids (slickwater), chemical additives, and deep oilfield mud, requiring an impenetrable, chemical-resistant liquid seal.
The PINA GUARD "Double Defense" for Oilfield Fleets
To keep the pressure pumping, PINA GUARD engineers connectors that treat extreme kinetic impact and abrasive sand as the baseline standard.

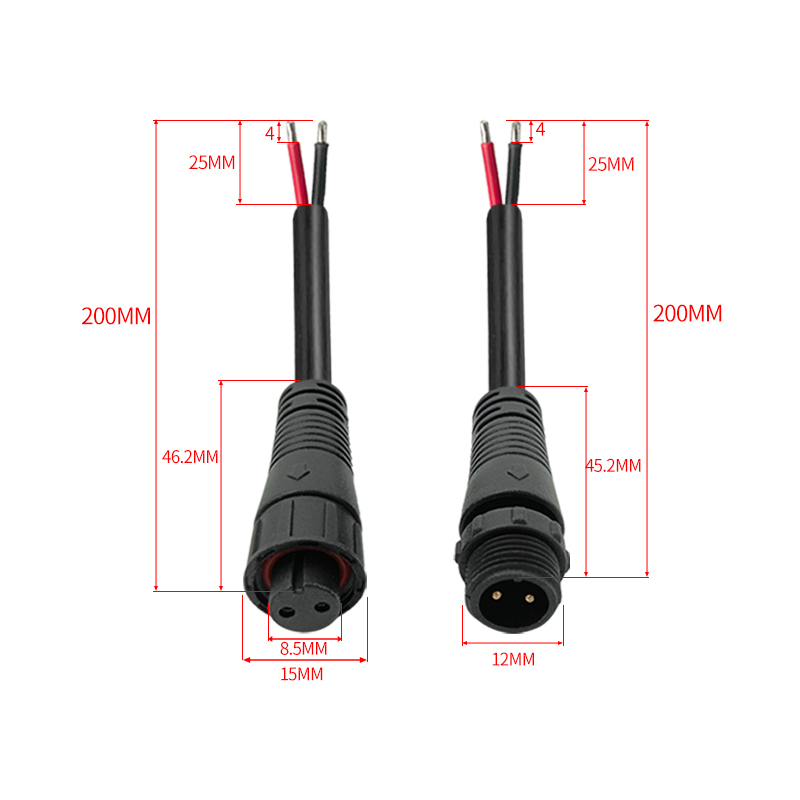

1. Soldered Cores for Unshakeable Pressure DataFracking operations rely on continuous, real-time pressure data to prevent catastrophic blowouts. Inside every PINA GUARD connector, we strictly reject friction-fit or screw-in terminals. Our precise 100% soldered manufacturing process metallurgically fuses the heavy-gauge copper wire directly to the M12 or GX contact pin. When the massive diesel pumps roar to life, the PINA GUARD soldered joint remains completely solid, ensuring that critical hydraulic data never drops.
2. Injection-Molded Armor Against Frac SandOnce the soldered connections are secured, we encapsulate the entire assembly in an injection-molded, heavy-duty thermoplastic shell. This overmolding process forms a flawless IP68 barrier. The monolithic exterior completely eliminates the mechanical threads where fine silica sand typically enters, creating an impenetrable shield against abrasive particulates and corrosive chemical spills.
3. Supreme Strain Relief for Heavy HandlingCables routed along the massive high-pressure iron manifolds suffer from severe bending fatigue and rough handling by rig crews. The thick, seamless injection-molded boots on our heavy-duty GX series act as structural shock absorbers. They diffuse mechanical tension away from the internal pins and provide a ruggedized physical barrier against blunt force impacts from heavy tools and dropped equipment.
Dominate the Oilfield
In the oil and gas industry, equipment downtime directly destroys massive operational margins. Do not let a fragile wiring harness paralyze your pumping fleet. Upgrade your fracking and wireline equipment with the unshakeable, soldered, and overmolded durability of PINA GUARD waterproof connectors.
