Paving the Way: Heavy-Duty M16 Connectors for Asphalt Milling Machines
Modern road construction and highway rehabilitation rely on highly advanced heavy machinery, notably Asphalt Milling Machines (Cold Planers) and Smart Pavers. To achieve perfectly smooth, millimeter-accurate road surfaces, these massive machines utilize sophisticated 3D leveling systems, sonic grade sensors, and multi-axis slope controllers.
Because these smart leveling systems require the transmission of complex, multi-channel data from the cutting drum to the operator's display, heavy equipment OEMs utilize the high-capacity M16 Circular Connector. However, the environment directly above a spinning asphalt milling drum is one of the most violent on earth. The equipment is subjected to bone-jarring vibration, extreme radiant heat, and a constant barrage of highly abrasive, sticky asphalt dust. A standard M16 connector will quickly vibrate apart, severing the grade-control data and causing the machine to cut uneven roads. To survive the extreme physics of highway construction, paving engineers specify the indestructible architecture of PINA GUARD’s overmolded M16 series connectors.
The Brutal Physics of the Highway Job Site
Wiring high-density sensor arrays on an asphalt milling machine involves a devastating combination of mechanical and environmental assaults:
Violent Milling Vibration: When a 7-foot-wide steel drum armed with tungsten-carbide teeth grinds into solid asphalt, it generates intense, high-frequency shockwaves. This violent mechanical resonance easily shakes the complex array of tiny screw-terminals inside standard M16 plugs loose, causing sonic grade sensors to instantly drop offline.
Abrasive Asphalt Dust and Hot Tar: Milling operations generate massive clouds of highly abrasive silica dust and sticky, hot liquid tar. This particulate matter easily penetrates the mechanical seams of standard multi-pin connectors, grinding away the internal contacts and causing catastrophic data loss.
Extreme Hanging Strain: Grade and slope sensors are often suspended off the sides of the milling machine. The heavy multi-core cables face continuous swinging, bouncing, and snagging hazards from passing dump trucks and ground crew tools.
The PINA GUARD "Double Defense" for Smart Paving
To keep the grade sensors locked on target, PINA GUARD engineers high-density M16 connectors that treat extreme kinetic impact and abrasive tar as the baseline standard.
1. Soldered Multi-Cores for Unshakeable Grade DataSmart pavers rely on continuous, zero-latency data from multi-axis sensors. Inside every PINA GUARD M16 connector, we strictly reject fragile friction-fit terminals. Our precise 100% soldered manufacturing process metallurgically fuses up to 24 copper wires directly to their contact pins. Even under the violent, earth-shattering vibration of a milling drum, the PINA GUARD soldered joints remain completely solid, ensuring that critical 3D leveling data never drops.

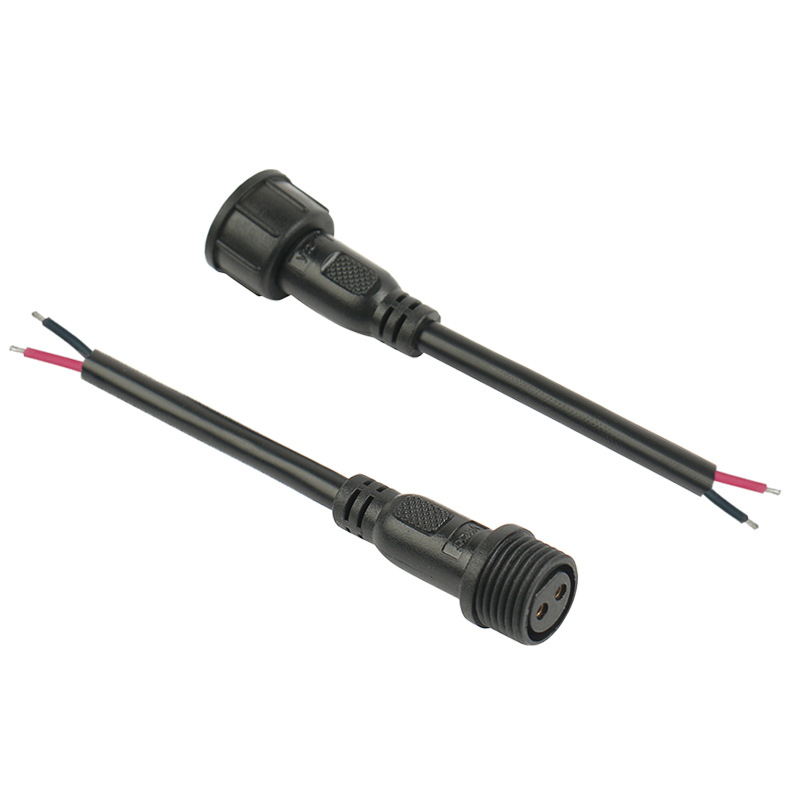

2. Injection-Molded Armor Against Tar and DustOnce the soldered connections are secured, we encapsulate the entire M16 assembly in an injection-molded, heavy-duty thermoplastic shell. This overmolding process forms a flawless IP68 barrier. The monolithic exterior completely eliminates the mechanical threads where abrasive asphalt dust and hot tar typically enter, creating an impenetrable shield against the harshest paving environments.
3. Supreme Strain Relief for Suspended SensorsPINA GUARD utilizes premium, impact-modified polymers engineered with extra-thick, seamless injection-molded boots. These robust boots act as structural shock absorbers, diffusing the immense mechanical tension of heavy, hanging multi-core cables and preventing them from snapping when snagged or battered by flying road debris.
Dominate the Grade
In the highway construction industry, a failed grade sensor means ripping up and repaving miles of asphalt—a million-dollar mistake. Do not let a fragile multi-pin connector paralyze your smart milling machine. Upgrade your heavy paving equipment with the unshakeable, soldered, and overmolded durability of PINA GUARD high-density M16 connectors.
