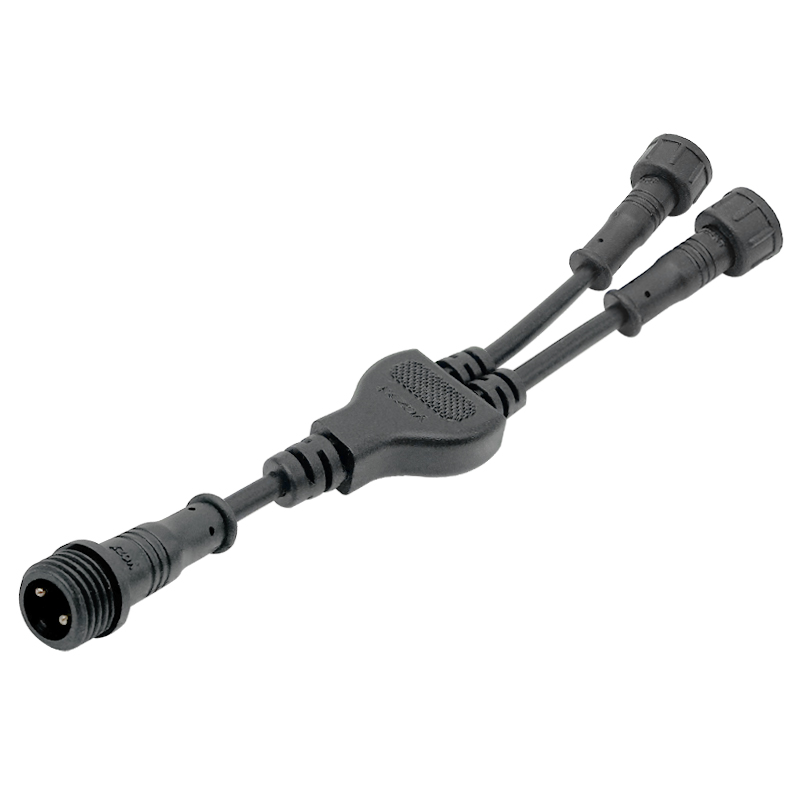

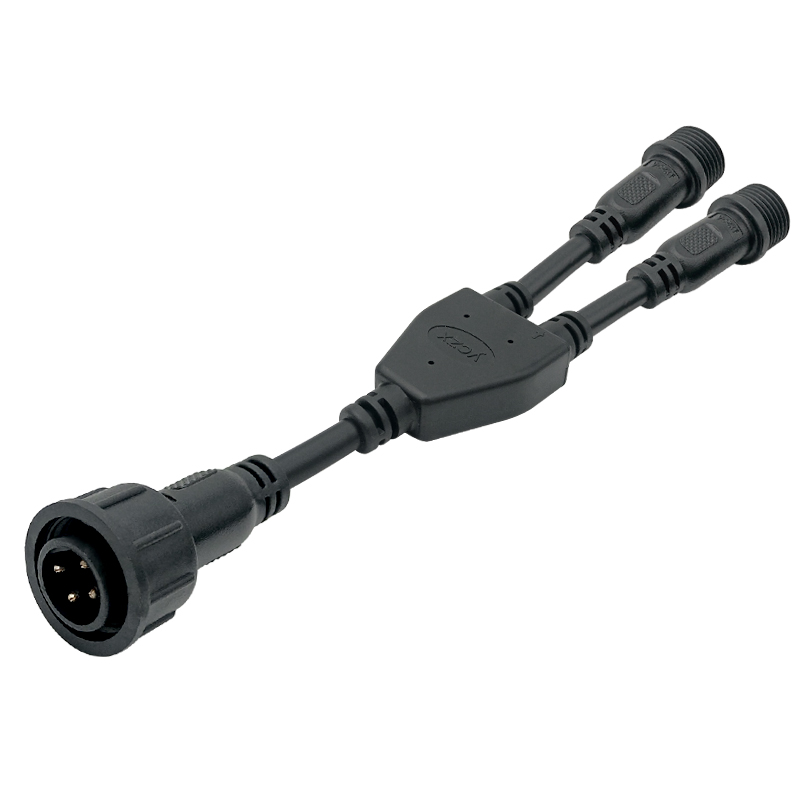

The M12 Y-type connector (also called an M12 splitter or M12 T-connector) is a specialized electrical connector designed to split or merge signals in industrial automation, robotics, and sensor networks. Its Y-shaped design allows one M12 port to branch into two, enabling flexible wiring without additional junction boxes.

With IP67/IP68-rated waterproofing, robust metal or plastic housing, and secure screw-locking, the M12 Y-connector ensures reliable performance in harsh environments like factories, automotive systems, and outdoor installations.

Key Features of M12 Y-Type Connectors

1. Splitting & Merging Capability

• Converts one M12 male/female port into two, reducing cable clutter and simplifying wiring.

• Supports signal splitting (1-to-2) or merging (2-to-1) for sensors, actuators, and Ethernet networks.

2. Rugged & Waterproof Design

• Shielded variants available for EMI/RFI interference resistance.

3. Multiple Coding & Pin Configurations

• M12 connectors (for sensors, PROFINET, Ethernet, etc.).

• Common pin layouts: 3-pin, 4-pin, 5-pin, 8-pin.

4. High-Quality Materials

• Metal (nickel-plated brass) or PBT plastic housing for durability.

• Gold-plated contacts for low resistance and long-term reliability.

5. Easy Installation

• Screw-locking mechanism prevents loosening under vibration.

• Field-wireable options for quick repairs and modifications.

Applications of M12 Y-Type Connectors

✅ Industrial Automation – Connects multiple sensors (proximity, temperature, pressure) to a single PLC input.
✅ Robotics & Motion Control – Splits encoder signals for multi-axis motor control.
✅ Ethernet & Fieldbus Networks – Used in PROFINET, EtherCAT, and DeviceNet systems.
✅ Automotive & Heavy Machinery – Waterproof design suits outdoor and high-vibration environments.
✅ Renewable Energy – Solar/wind power monitoring systems requiring signal distribution.

Advantages Over Traditional Junction Boxes

🔹 Space-saving – No need for bulky enclosures.
🔹 Cost-effective – Reduces wiring complexity and labor.
🔹 Maintenance-friendly – Easy to replace without rewiring entire systems.
🔹 Flexible configurations – Supports both straight (T-type) and angled (Y-type) designs.

How to Choose the Right M12 Y-Connector?

1. Check the Coding (A, B, D, X) – Ensures compatibility with your system.

2. Select Pin Count – Match the sensor/device requirements (e.g., 4-pin for IO-Link).

3. Shielded vs. Unshielded – Needed for high-noise environments?

4. Material & IP Rating – Metal for extreme conditions, plastic for cost savings.

Conclusion

The M12 Y-type connector is an essential component for modern industrial networks, offering flexibility, durability, and efficiency in signal distribution. Whether for factory automation, robotics, or harsh outdoor applications, this connector simplifies wiring while maintaining high performance.

For optimal performance, always choose high-quality M12 Y-splitters from trusted manufacturers.
