Breaking Ground: Heavy-Duty Connectors for Construction and Earthmoving Equipment
The modern construction job site is highly digitized. Today’s earthmoving equipment—including heavy excavators, bulldozers, wheel loaders, and articulated dump trucks—are outfitted with advanced GPS grading sensors, hydraulic monitors, and fleet telematics.
However, this delicate electronic hardware must survive in the most destructive environments imaginable. Deep mud, driving rain, abrasive silica dust, and massive kinetic impacts are everyday realities on a construction site. When a wiring harness fails, a million-dollar machine sits idle, delaying entire project timelines. To survive the brutal physics of heavy earthmoving, equipment OEMs and upfitters specify the indestructible architecture of PINA GUARD’s overmolded M12 and GX series connectors.
The Brutal Physics of the Job Site
Wiring harnesses on heavy construction equipment face a devastating combination of environmental and mechanical assaults:
Violent Kinetic Shock: When an excavator bucket violently strikes subterranean bedrock, the resulting mechanical shockwave travels through the entire boom arm. This resonance easily shatters brittle commercial plastics and shakes standard screw-terminals loose.
Abrasive Dust and Deep Mud: Construction machines operate in clouds of abrasive dirt and frequently track through deep, wet mud. Fine particulate matter and moisture easily penetrate the mechanical seams of standard connectors, causing catastrophic electrical shorts.
High-Pressure Field Washdowns: Maintenance crews routinely use high-pressure, heated pressure washers to blast hardened clay and grease off the machinery, which can force water past inferior rubber seals.
The PINA GUARD "Double Defense" for Heavy Machinery
To keep earthmoving fleets operational, PINA GUARD engineers connectors that treat extreme kinetic impact and heavy mud as the baseline standard.
1. Soldered Cores for Unshakeable TelematicsModern grading and machine-control systems rely on continuous data transmission. Inside every PINA GUARD connector, we strictly reject friction-fit or screw-in terminals. Our precise 100% soldered manufacturing process metallurgically fuses the heavy-gauge copper wire directly to the M12 or GX contact pin. When a bulldozer impacts a boulder, the PINA GUARD soldered joint remains completely solid, ensuring that critical GPS and hydraulic data never drops.
2. Injection-Molded Armor Against Mud and DustOnce the soldered connections are secured, we encapsulate the entire assembly in an injection-molded, heavy-duty thermoplastic shell. This overmolding process forms a flawless IP68 barrier. The monolithic exterior eliminates the mechanical threads where fine dirt and mud typically enter, creating an impenetrable shield against both abrasive particulates and high-pressure washdowns.

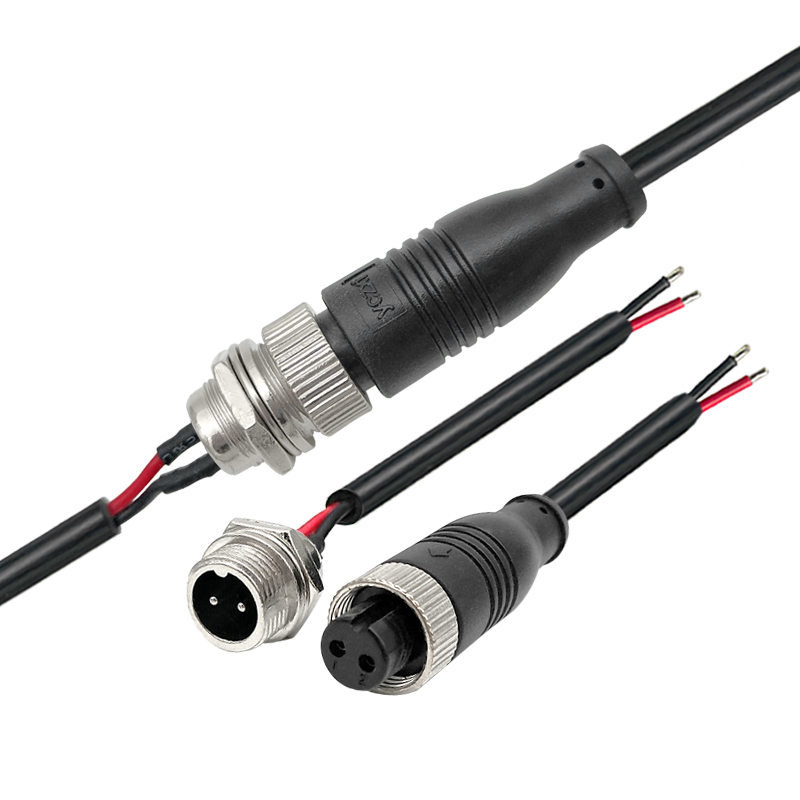

3. Supreme Strain Relief for Hydraulic BoomsCables routed down the long, articulated hydraulic arms of excavators suffer from severe bending fatigue and the constant threat of snagging on debris. The thick, seamless injection-molded boots on our heavy-duty GX series act as structural shock absorbers. They diffuse mechanical tension away from the internal pins and provide a ruggedized physical barrier against blunt force impacts and over-extension.
Keep the Fleet Digging
In the construction industry, equipment downtime directly destroys project margins. Do not let a fragile wiring harness paralyze your heavy machinery. Upgrade your earthmoving equipment with the unshakeable, soldered, and overmolded durability of PINA GUARD waterproof connectors.
